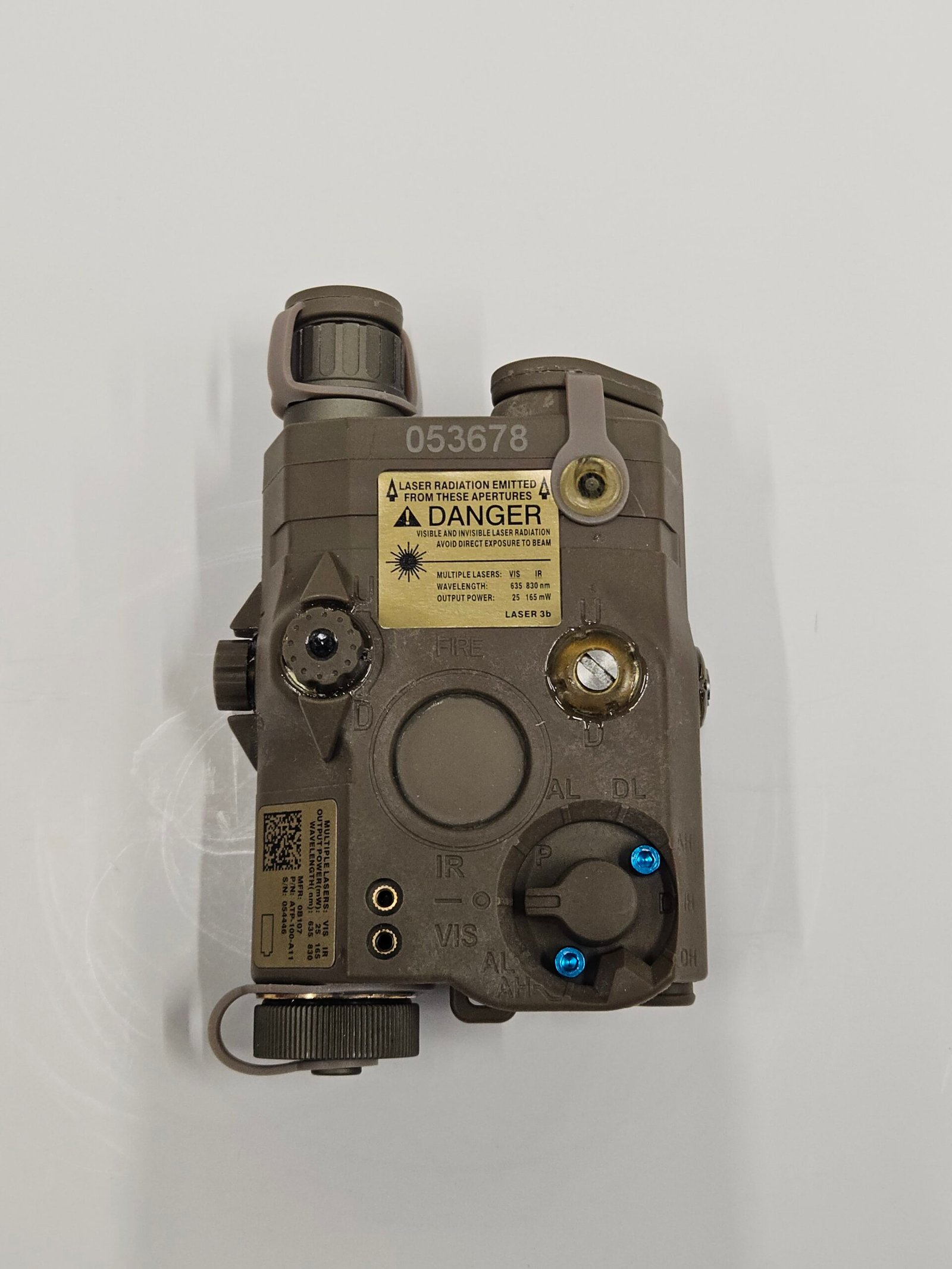

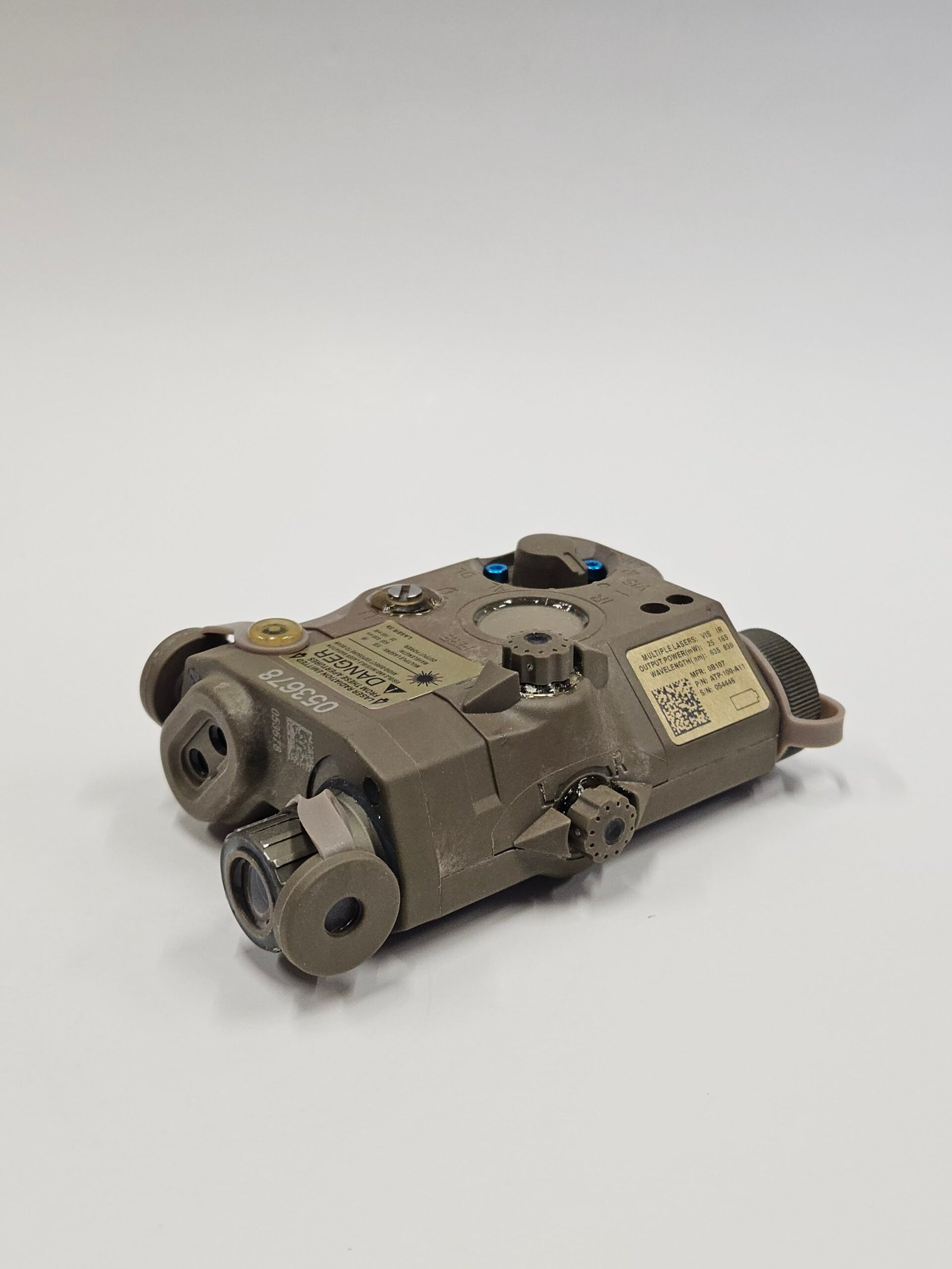

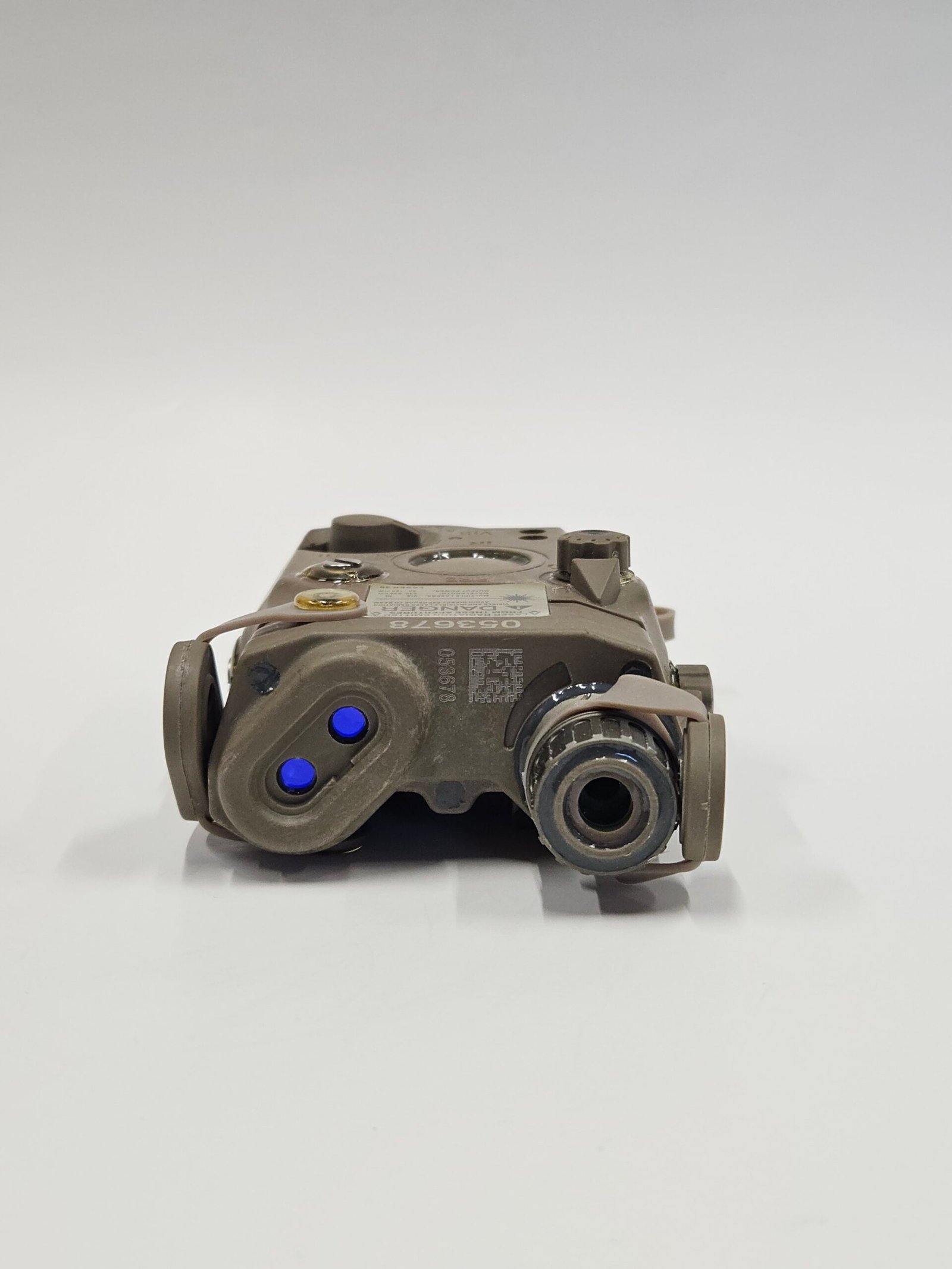

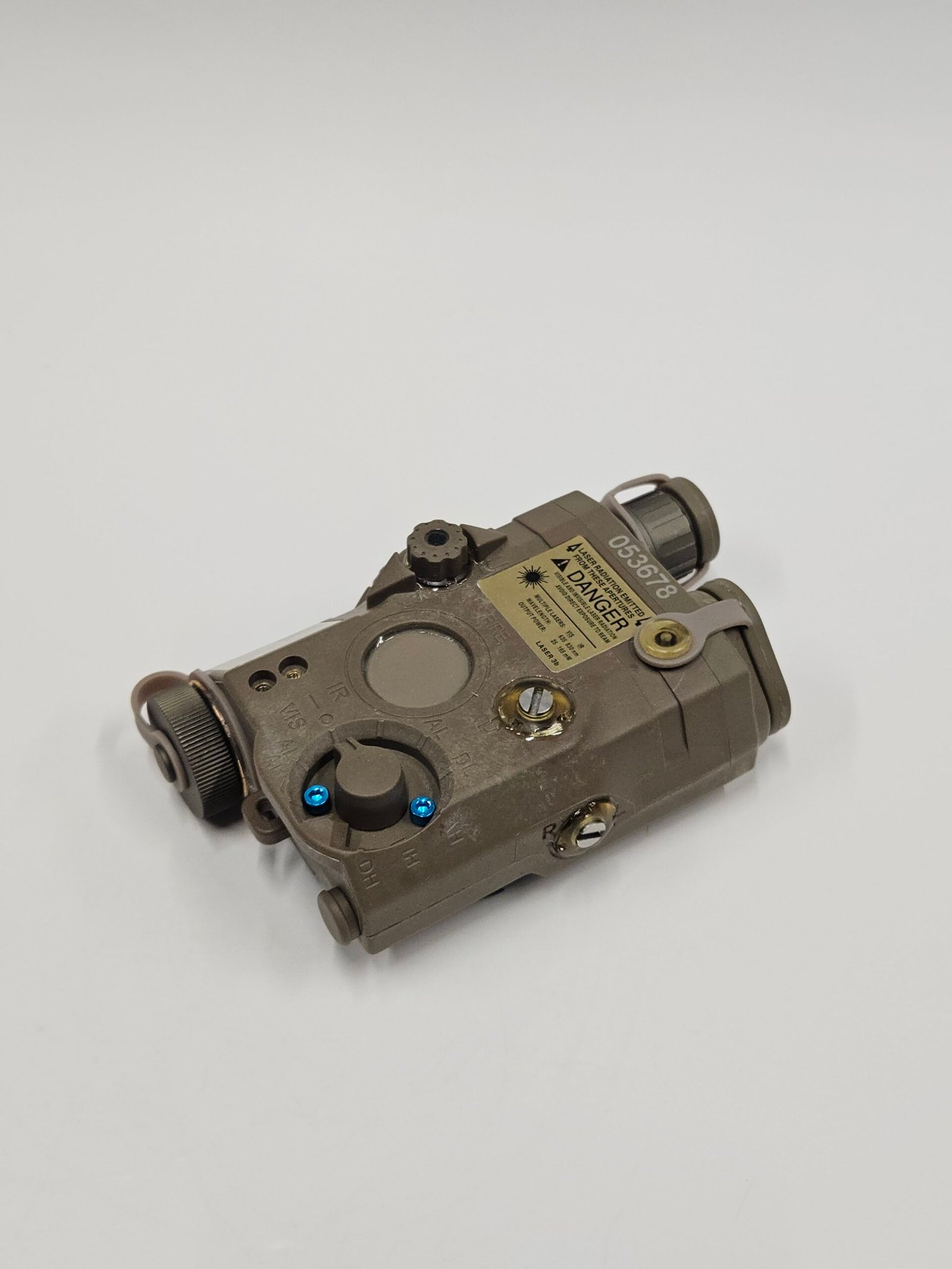

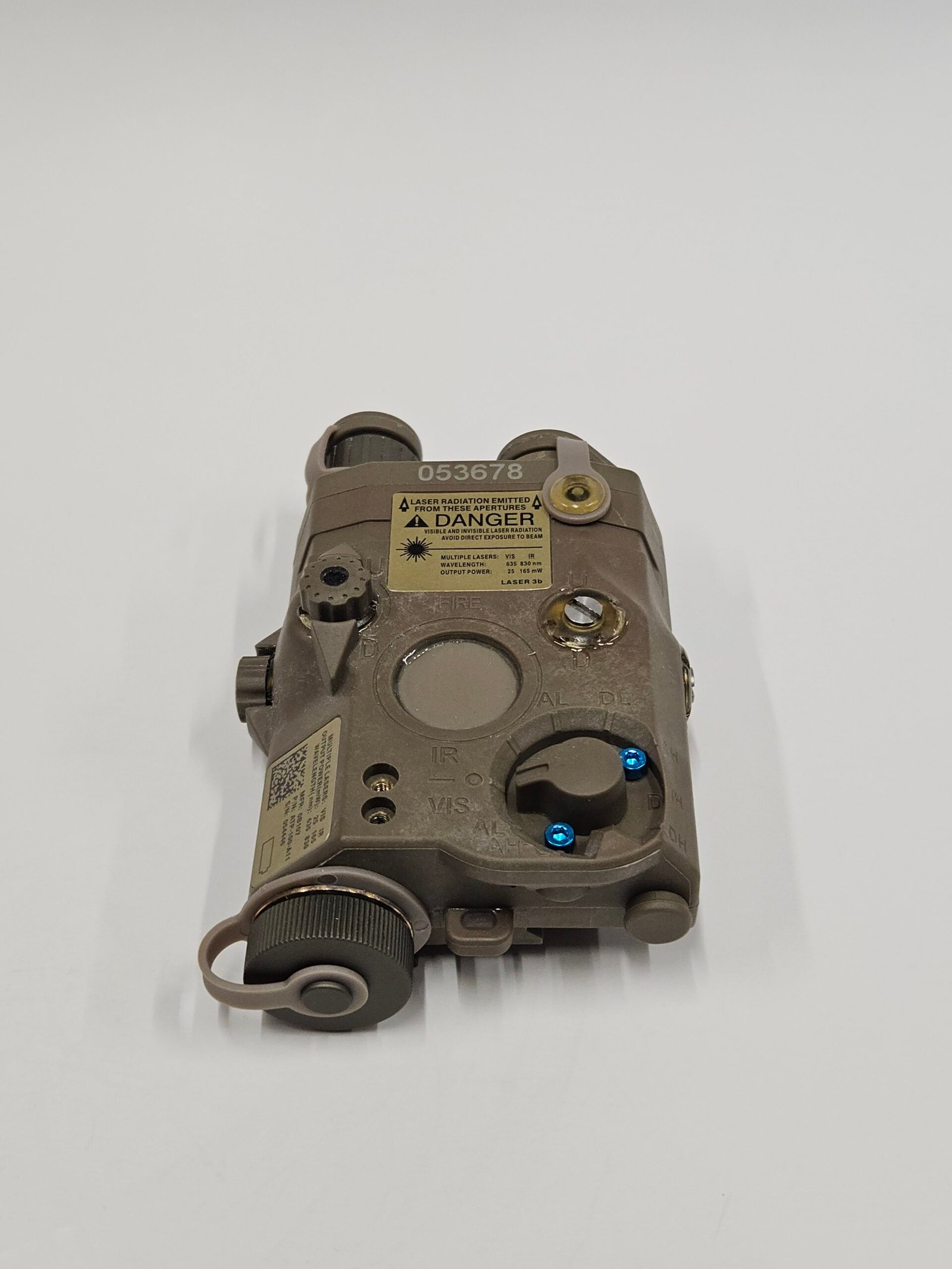

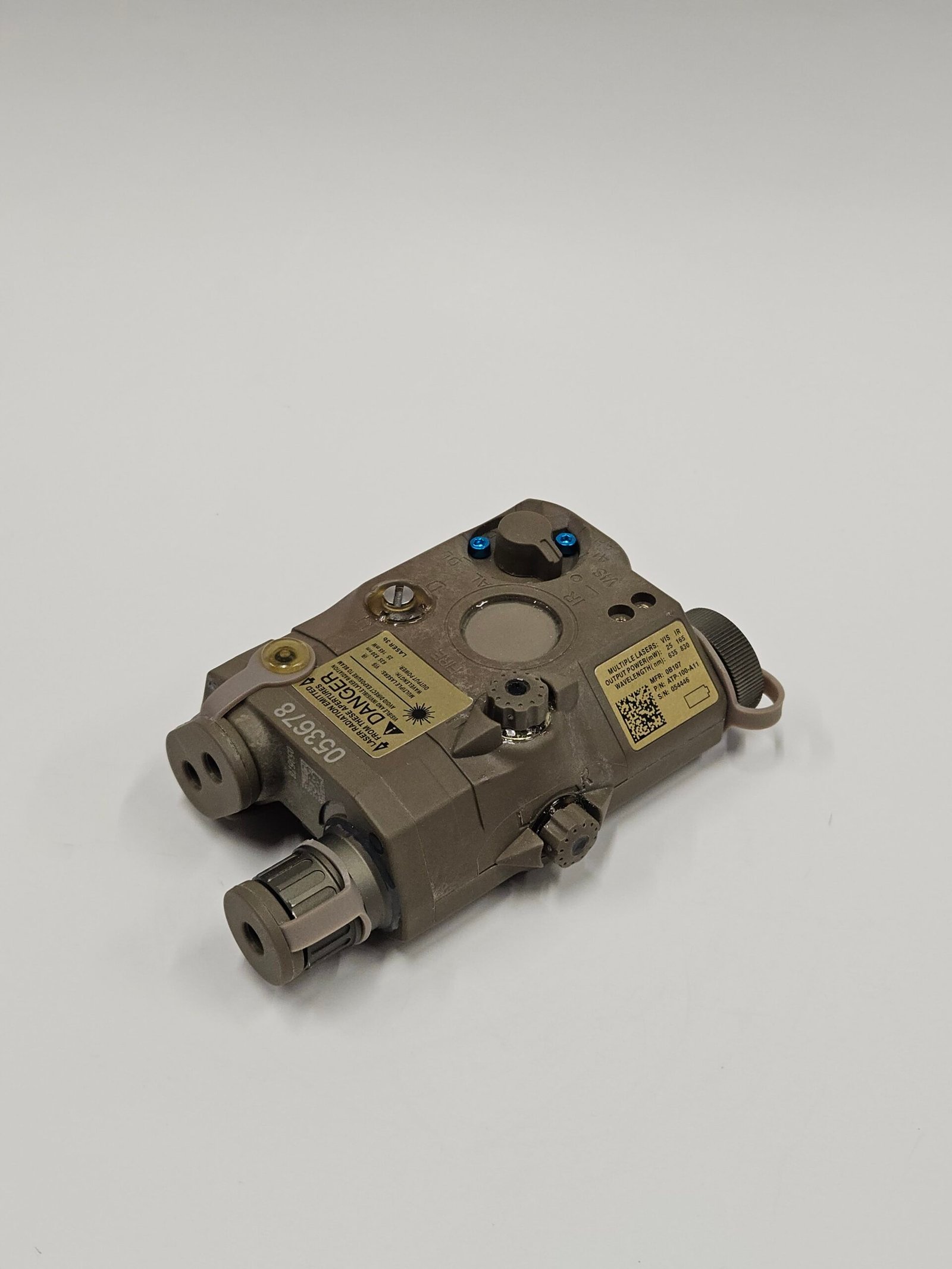

DLD-EG LA-5C UHP VCSEL PEQ

The DLD-EG LA-5C UHP VCSEL PEQ delivers unmatched performance for the most demanding users, utilizing the same VIS laser, IR laser, and VCSEL illuminator components found in our flagship DLD-EG 200 VCSEL NGAL. Featuring VIS and IR aiming lasers co-aligned to within 1 MOA and a high-performance VCSEL illuminator, it provides exceptional halo free IR illumination quality with superior beam uniformity and performance.

Each unit is assembled and fully PCB-potted using the same epoxy system employed across all DLD-EG products, including our higher-end models. This construction provides extreme durability, enhanced shock resistance, and a more authentic finish. Rated to withstand up to 1800G of recoil, it significantly exceeds the standard unit’s 1200G rating.

Built for harsh environments, every unit is fully waterproof and submersible (up to 1 foot for 5 minutes) and features crisp, tactile zeroing turrets with no play between clicks, ensuring reliable and repeatable adjustments. The unit is compatible with standard Crane switches for maximum compatibility across a wide range of setups.

Every unit is individually serialized, hand-inspected prior to shipment, and includes a detailed DLD QC sheet. To complete the authentic appearance, each unit comes equipped with our exclusive DLD safety screws.

For users who demand maximum durability, waterproofing, and recoil resistance, the DLD-EG LA-5C UHP VCSEL is built to perform. Each unit is backed by our 1-Year Warranty.

The programmable P-Mode allows complete customization of the IR illuminator, including constant-on operation and multiple flash-rate settings.

Each unit comes standard with our exclusive IR ND Filter and IR Illuminator Diffuser Cap.



Included ND Filter
Reduce the intensity of your IR laser for improved eye safety and reduced laser bloom. This Neutral Density (ND) filter allows for more precise control and a cleaner, more defined beam. Especially useful in close-range or high-reflectivity environments.
This is a DarkLight Dynamics (DLD) add on. Not included with Evolution Gear products.

UHP Marking Option
This replaces the standard fire button with one marked UHP. There are no other differences between the two, both use the same components and produce the same output.

SF/Crane Dual Switch Option
Enables use of a SureFire white light and LA-5C via Crane plug.

Top button: Constant on/off for both the SureFire light and LA-5.
Bottom button: Momentary or double-tap constant on for the LA-5 in any mode.

---

Features

• VCSEL Illuminator

• Functional IR Illuminator Diffuser Cap

• Functional IR ND Filter

• 100mrad IR Illuminator divergence

• 1 Year Warranty

• Reinforced Glass Fiber Body

• Crane Plug

• DLD Safety Screws

• IP67 Waterproof

---

Includes

• LA-5C UHP

• Crane Remote Switch

• Functional IR Illuminator Diffuser Cap

• Functional IR ND Filter

• DLD QC sheet

---

Build & Design

• Housing: Glass Fiber Reinforced

• Potting: Full PCB Potting

• Adjustments: Clicking windage/elevation adjust

• Mount Type: Picatinny mount

• Mounting Torque Specification: 30 in-lbs

• Color: Tan

• Dimensions: 3.54in × 1.97in × 1.38in

• Weight: 6.7 Ounces

• Waterproof Rating: IP67 Waterproof

• Shock & Vibration Resistant: Tested to withstand impacts up to 1800 G

---

Functionality

• P-Mode Function: Programmable IR Illumination Mode (Constant-on or Multiple Flash Rates)

• Illuminator: Adjustable IR illuminator

• Diffuser Cap: Comes with a functional IR illuminator diffuser cap

• Functional IR ND Filter: Comes with a functional IR ND filter

• Switch Compatibility: Compatible with any Crane switch

---

Laser Specifications

• Co-Alignment Precision: ≤1MOA

IR Laser

• Wavelength: 850nm

• Power: 2.5mW

• Beam Divergence: 1mrad

Visible Laser

• Wavelengths: 650nm / 520nm

• Power: 4.5mW

• Beam Divergence: 0.5mrad

---

IR Illuminator

• Type: VCSEL 830nm

• Power: <120mW (VCSEL)

• Divergence: 100mrad

---

Power & Warranty

• Battery Type: 3V CR123A

• Warranty: One year warranty

• Manufacturer: Evolution Gear (EG)
